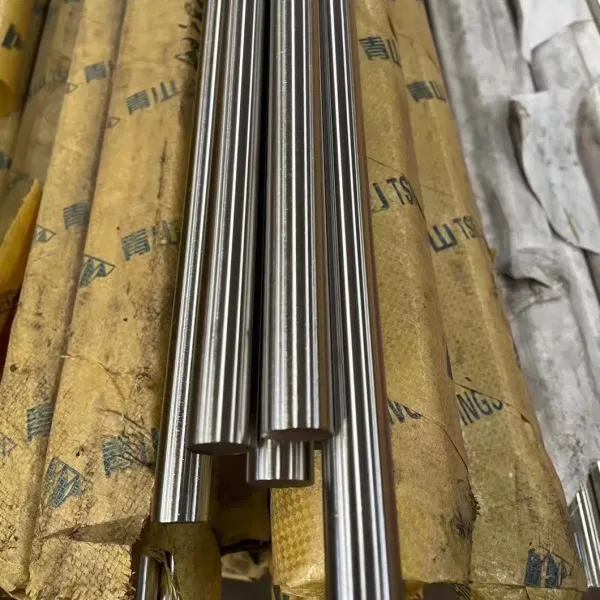

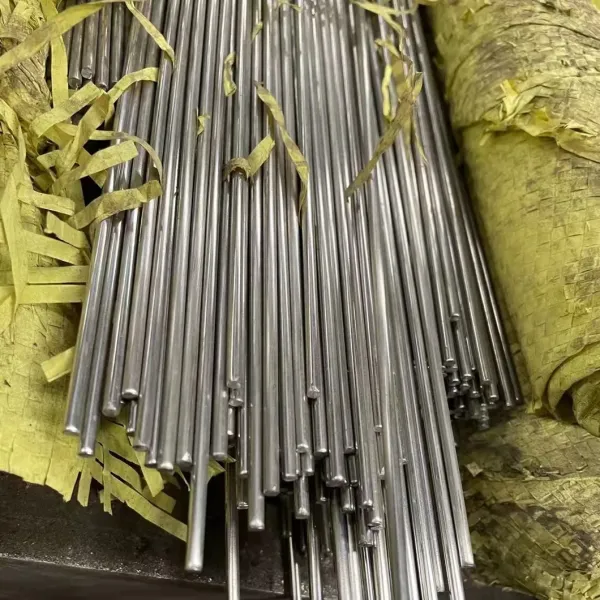

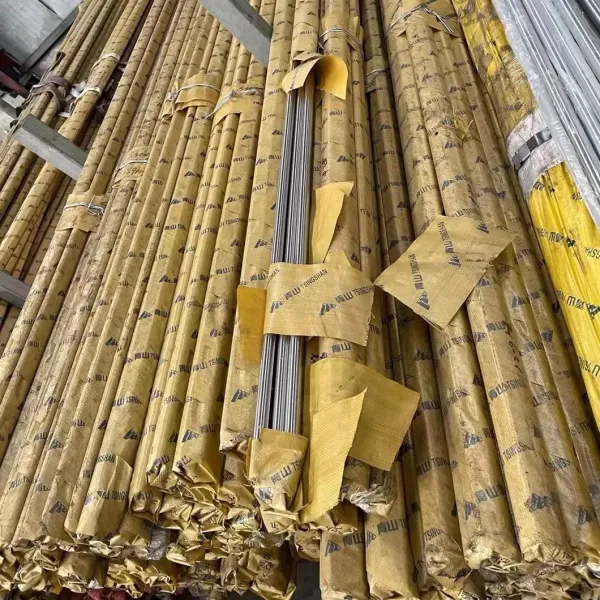

Low Carbon 304L / 1.4306 / UNS S30403 Stainless Steel Bright Polishing Bar
Product Specification
| Products |
Stainless Steel Bright Bar |
| Standard |
ASTM GB DIN EN |
| Diameter |
3-100 mm |
| Length |
6m /pcs or cutting as request |
| Finishing |
black bar / Bright Bar |
| Main Grade |
201 301 303Cu 304 304L 309S 310S 316L 316Ti 317L 318 321 347 410 420 430 431 440a/b/c 904L 2205 2507 Hastelloy C276 C4 C22 Inconel 600 625 Incoloy 800 825 825H.etc |
| Service |
Cutting, surface polishing, heat treatment |
| Brand |
Walsin BAOSTEEL TISCO QINGSHAN |
Material Description
Our stainless steel bright bars are of premium quality and are produced from hot rolled plain bars/wire rods. These Bright Bars have a smooth and bright surface with accurate tolerance on the dimensions and possess improved mechanical properties, greater dimensional accuracy, and better surface integrity. These superior product qualities provide significant design advantages and benefits and are mainly used in pumps, fasteners, automobile components, furniture products, cutlery products, etc.
Our bright bars also find extensive use in the automobile industry. All engine components such as nuts, bolts, shafts, etc., are made from special grades of Bright Bars.
Cold Drawn & Polished Round Bars
| Size Range (DIA) |
1.8MM TO 55.56MM |
| Tolerance |
h8, h9, h10, h11 |
| Grades |
201, 201 Ni 3, 202, 204Cu, 303, 304, 304L, 316, 316L, 409, 410, 416, 420, 430, 430L, 430F |
Peeled & Polished Round Bars
| Size Range (DIA) |
14MM TO 140MM |
| Tolerance |
h9, h10, h11, k10, k12, k13 |
| Grades |
303, 304, 304L, 316, 316L, 410, 416, 420, 430, 430L, 430F, 431, 2205, 2507, 904L |
Forged, Rough Turned Round Bars
| Size Range (DIA) |
150MM TO 400MM |
| Tolerance |
0mm/+3mm (-0 "/+0.12") |
| Grades |
304, 304L, 316, 316L, 410, 416, 420, 431, 310S, 2205, 2507, 904L |
Standard Information of Stainless Steel Bar
ASTM / A276 - This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels.
ASTM / A479 - This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels.
ASTM / A484 - This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions.
ASTM / A582 - This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels.
ASTM / B473 - This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition.
