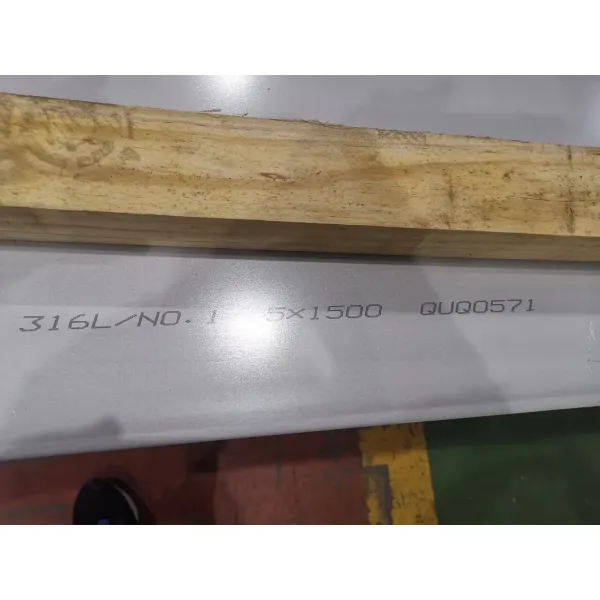

12mm Thick 6m X 2m ASTM S31603 Stainless Steel SS316L Plates
SS 316L PLATE ASTM A240 316L Stainless Steel Plate NO.1 Finished 2000mm Width.
In ASTM A240, type 316 and 316L is a chromium nickel austenitic steel. The addition
of molybdenum enhances corrosion resistance, making 316/316L more corrosion resistant
than 304/304L stainless steel. While 316L has lower carbon content, its strength is
only slightly higher than 316 steel, making the two grades nearly interchangeable in
many applications. Grade 316L is particularly suitable for welding applications due
to its reduced carbon content.
316/316L steel offers outstanding corrosion resistance in both atmospheric and
oxidizing environments, including marine atmospheres, even in welded conditions.
Typically non-magnetic in annealed condition, cold drawing or cold rolling processes
may introduce slight magnetism, which can be addressed through further processing.
Applications of ASTM A240 316/316L
316/316L plate is used to manufacture products for applications exposed to salt water,
acids such as sulfuric acid and chloride, petrochemicals, chemicals, and high-heat
environments such as engines and motors. Common products include:
- Tanks and storage vessels
- Structural supports and frames
- Enclosures and housings
- Engine, motor and machinery components
- Industrial parts and equipment
Chemical Composition of 316/316L Steel Plate
| Element |
316 |
316L |
| Carbon |
0.08 |
0.030 max |
| Chromium |
16.0-18.0 |
16.0-18.0 |
| Nickel |
10.0-14.0 |
10.0-14.0 |
| Molybdenum |
2.00-3.00 |
2.00-3.00 |
| Manganese |
2.00 |
2.00 |
| Silicon |
0.75 |
0.75 |
| Nitrogen |
0.10 |
0.10 |
| Phosphorus |
0.045 |
0.045 |
| Sulfur |
0.030 |
0.030 |
Mechanical Properties of 316/316L Steel Plate
| Mechanical Property |
316 |
316L |
| Yield Strength, min. (ksi) |
30 |
25 |
| Tensile Strength, min. (ksi) |
75 |
70 |
| Elongation, min. (%) |
40 |
40 |
| Hardness, max. (Rb) |
95 |
95 |
Stainless Steel Standards of 316/316L Steel
| 316 Standards |
316L Standards |
| ASTM A240 |
ASTM A240 |
| ASTM A666 |
ASTM A666 |
| ASME SA240 |
ASME SA240 |
| AMS 5524 |
AMS 5507 |
